Pop-up Lawn Sprinkler Positioning

Designing a residential or commercial irrigation system requires careful planning. Once the garden dimensions have been plotted and the ideal sprinkler heads selected, the next critical step is to map out the exact location of each sprinkler head. Proper head placement is the dividing line between an efficient system that yields a lush, healthy landscape and a poorly optimised system characterised by dry patches, runoff, and water waste.

Why Sprinkler Head Placement Matters

Inaccurate sprinkler head mapping typically leads to three major landscape and operational issues:

• Dry Patches: Unwatered voids or sections receiving insufficient precipitation will result in stressed, brown turfgrass and dying plants.
• Water Waste: Over-spraying onto impervious surfaces like sidewalks, driveways, and fences wastes natural resources and can lead to structural damage over time.
• Excessive Utility Costs: Homeowners often run their irrigation systems for longer durations to compensate for poorly spaced heads, resulting in high water bills and saturated soils in other zones.

The key to avoiding these pitfalls is head-to-head coverage. This concept dictates that the spray radius of one sprinkler head must reach all the way to the adjacent heads. When plotted visually, these overlapping circular arcs ensure a uniform distribution rate across the entire lawn area, leaving no zone dependent on a single source of spray.

Visualizing Head-to-Head Coverage

To achieve optimal head-to-head coverage, your layout design must represent a network of overlapping circles and arcs.

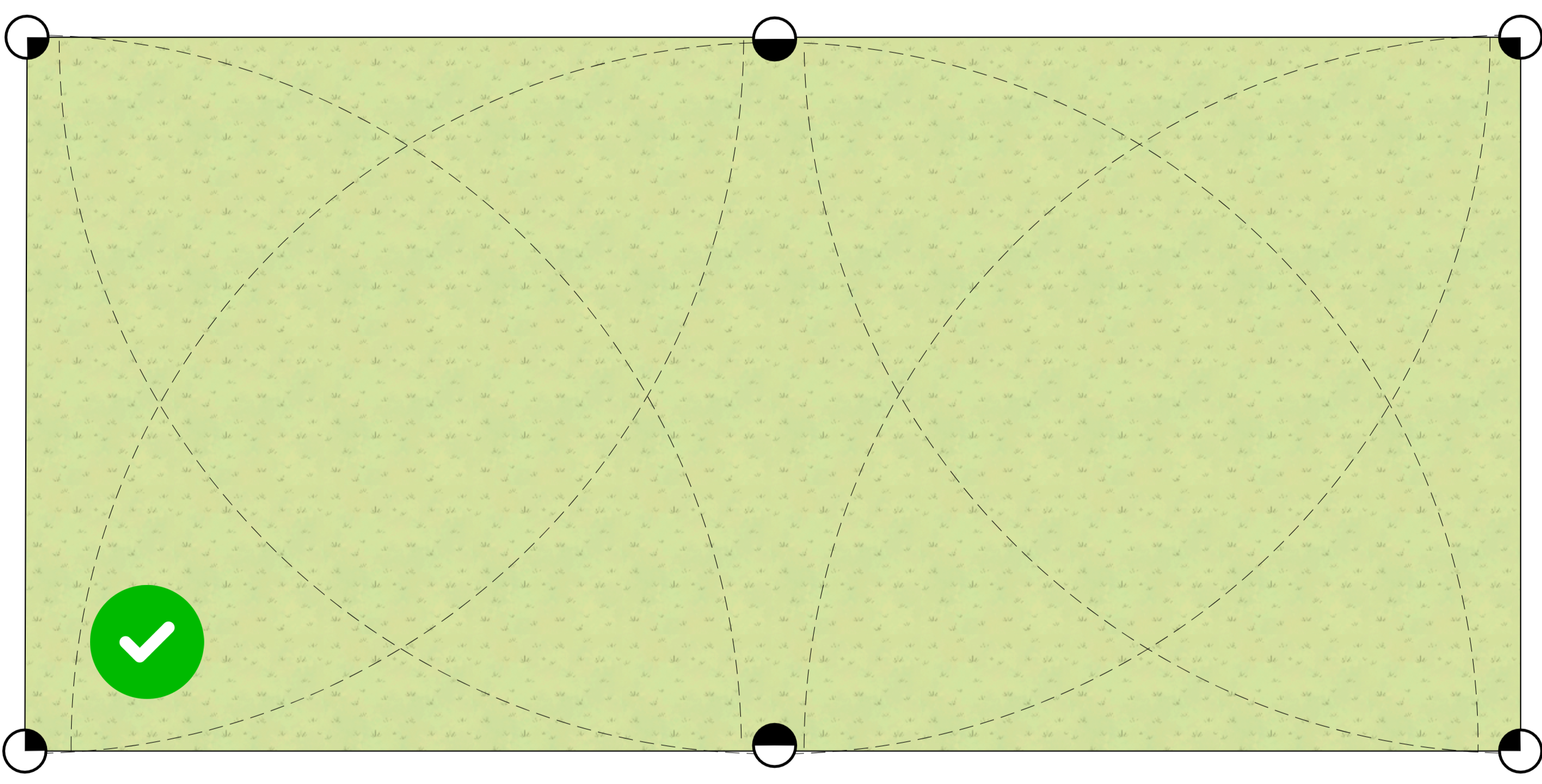

Ideal Coverage: When drawing, the edge of each circle should comfortably intersect the centre point (the physical nozzle location) of the next neighbouring sprinkler head. When multiple heads are arranged in a grid, their overlapping circles form a uniform "flower petal" configuration, with multiple spray arcs crisscrossing. This guarantees a balanced precipitation rate. While an overlap of above 70% is considered ‘good enough’ for domestic systems, 100% overlap is still encouraged.

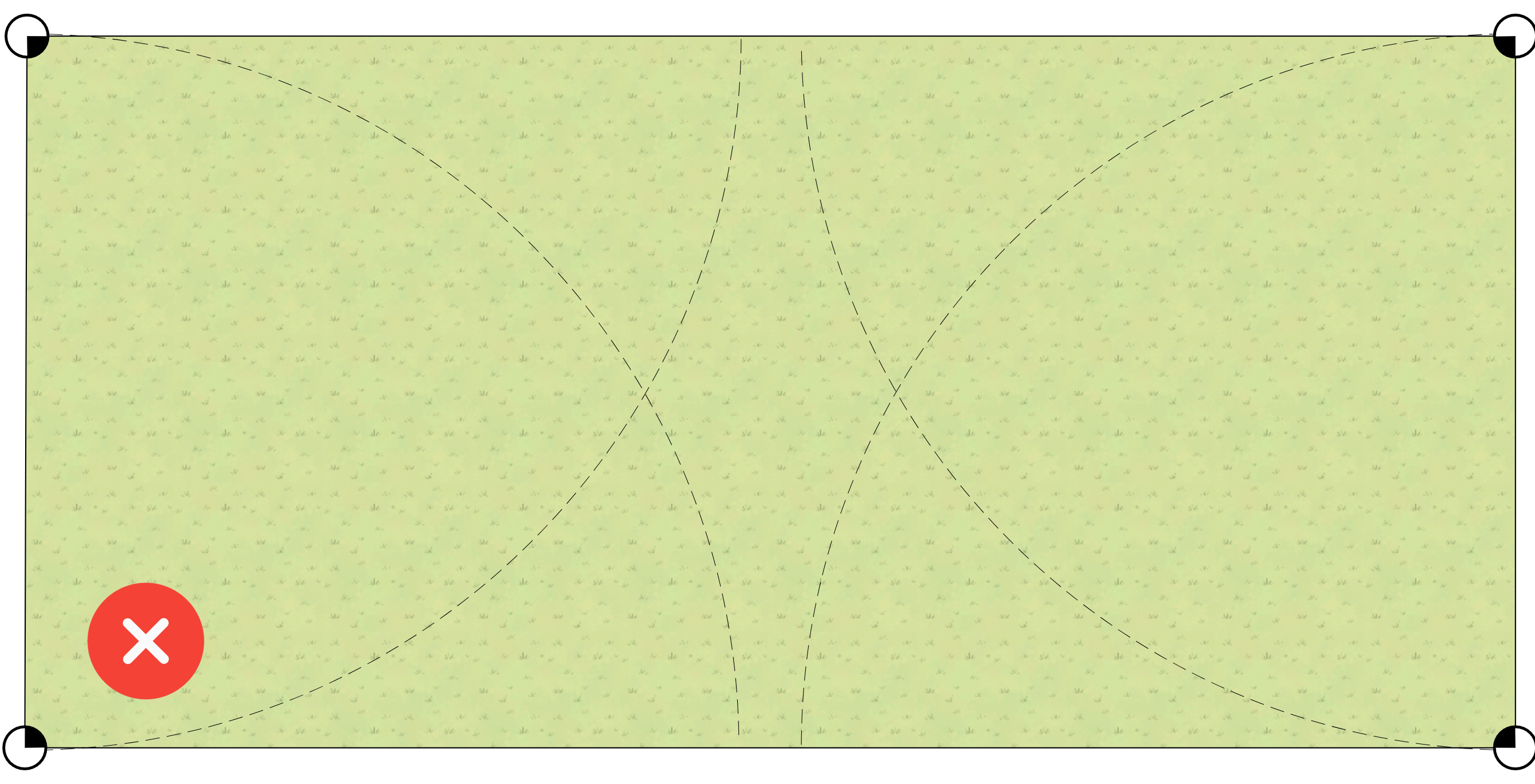

Deficient Coverage: If the boundaries of your spray arcs merely touch at their outer edges, or if wide gaps exist between the arcs, dry zones will form. Simply increasing run times will not solve this layout issue, as it only over-saturates the areas closest to the nozzles while leaving the gaps dry.

A Step-by-Step Manual Layout Process

Follow this systematic method to establish your sprinkler head grid:

1. Step 1: Position Anchor Heads in Corners: Begin by placing sprinkler heads in all the outer corners of the target landscape. In these tight 90-degree configurations, use quarter-pattern (90°) nozzles. Adjust the expected radius based on the performance data for your chosen nozzle/sprinkler.
2. Step 2: Place Perimeter Heads: Examine the distance between your corner anchors. If the spray from one corner does not reach the opposite corner, you must insert perimeter heads along the boundaries. Use half-circle (180°) spray patterns for straight perimeters. Place these heads at intervals equal to the sprinkler's rated radius to maintain head-to-head spacing along the outer edges.
3. Step 3: Fill in the Centre (The Middle Grid): Draw grid lines connecting the perimeter heads on opposite sides of the yard. At the points where these grid lines intersect inside the lawn area, place full-circle (360°) heads. Check that the inner heads overlap with both the perimeter and adjacent internal heads.

Spacing Guidelines and Setbacks

Position your sprinkler heads 15 to 30 cm (150 to 300 mm) away from pavements, driveways, kerbs, and garden fences. On breezy days, sprinklers can easily overspray their target by up to 30 cm. This sensible setback ensures water stays on your lawn rather than pooling on paved areas, whilst still providing excellent coverage right to the turf's edge. Additionally, this extra clearance safeguards the delicate heads from being damaged by passing foot traffic, heavy boots, or lawnmowers.

Special Design Situations

1. Narrow Strips

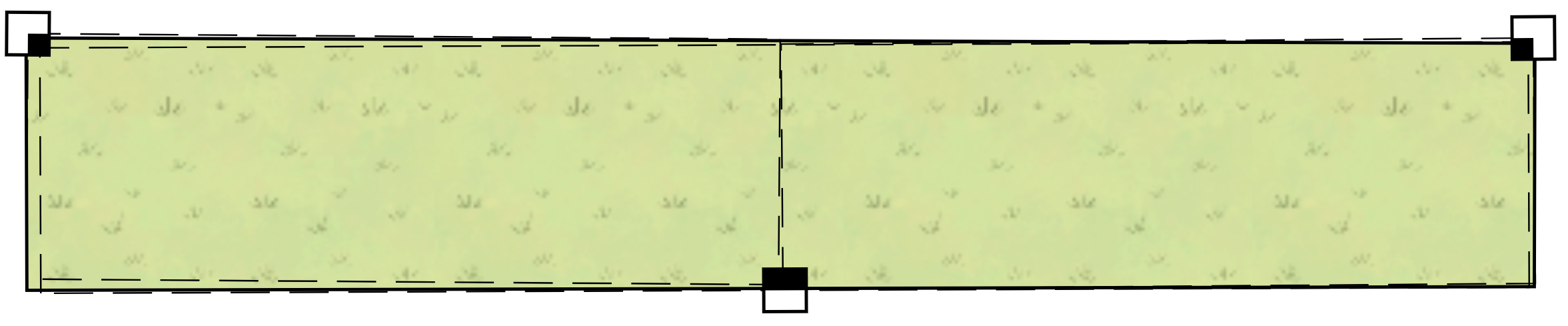

Thin corridors of turf, such as parkways between sidewalks and curbs, present unique coverage challenges. Standard circular patterns will result in massive overspray. For strips approximately 1.5m wide, use strip-pattern spray nozzles. These specialised nozzles distribute water in a precise rectangular block rather than a circle. Centre these heads directly down the middle of the narrow lane to keep the water off the paths.

2. Curves and Irregular Outlines

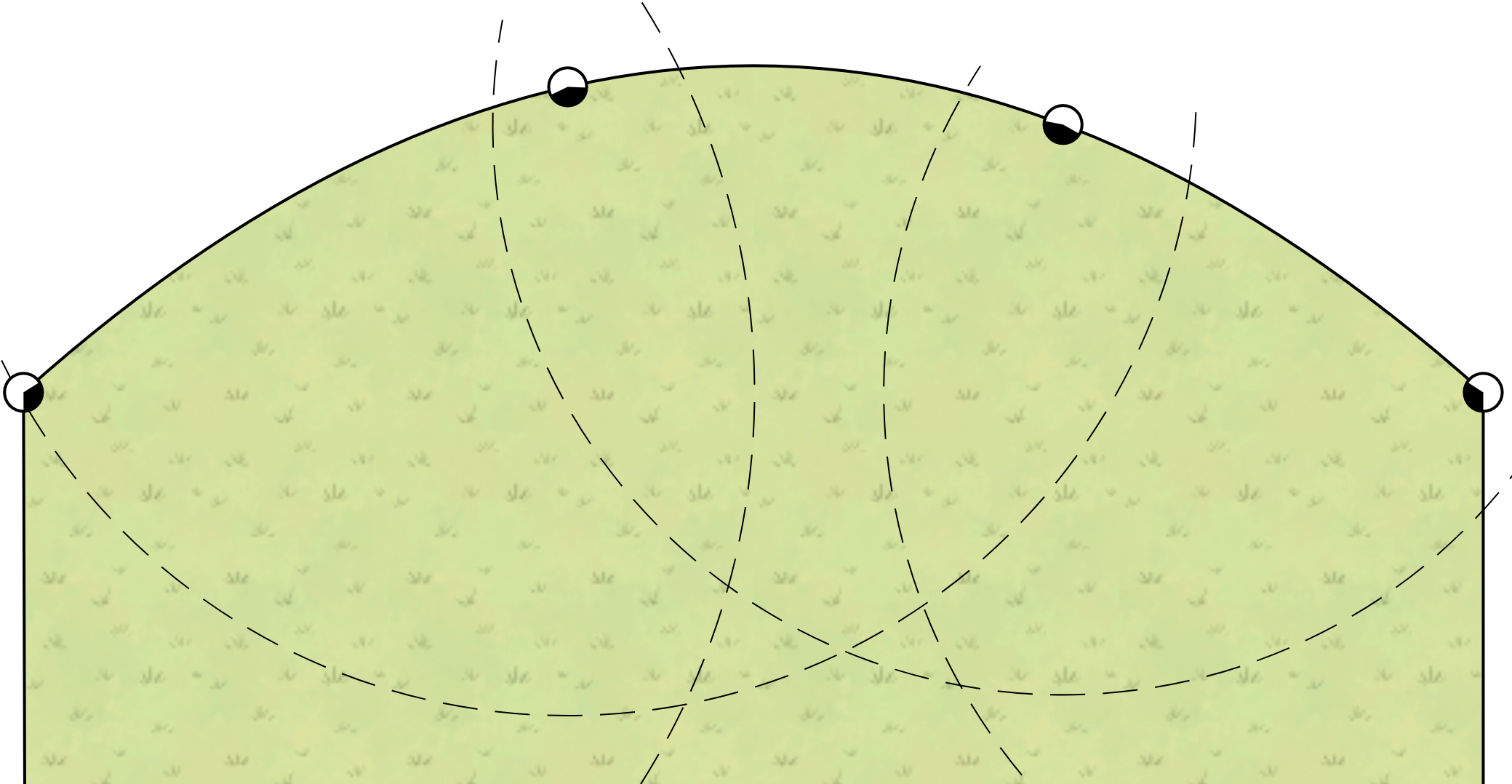

For curved landscape edges, break the curved border into several short, straight segments. Place your heads along these imaginary straight segments. To fit non-standard geometry, utilise adjustable-arc nozzles (such as Rain Bird’s R-VAN or HE-VAN models). These nozzles let you fine-tune the spray angle anywhere from 45° to 270°, giving you precise control and preventing overspray onto structures or gardens. However, be aware that sometimes overspray is unavoidable.

Common Layout Pitfalls to Avoid

Even experienced DIYers occasionally make planning errors. Avoid these common mistakes:

• Mixing dissimilar hardware: Mixing gear-drive rotors with fixed spray heads in a single zone results in uneven watering. Try to use the same model, arc, and nozzle on a single line unless using products that have Matched Precipitation Rates (MPR).
• Overlooking obstacles: Ensure that mature shrubs, tree trunks, and outdoor structures do not intercept the direct spray path of your heads.
• Disregarding boundaries: Direct water away from pedestrian zones. Use setback limits and adjustable nozzle settings to keep water where it belongs.
• Failing to plan for future plant growth: Allow space around young plantings, as their mature canopies can block low-profile spray paths years later.

The Next Phase: Grouping Heads into Zones

Once you have mapped out the locations and spray arcs of every sprinkler head, you are ready to transition to the hydraulic zoning phase. Since residential water supplies cannot typically run all sprinklers simultaneously, you must group heads into distinct watering zones. Each zone is managed by a dedicated valve and runs independently. Group heads based on their water consumption rates (LPM or litres per minute), taking into consideration their arcs, nozzle selection, and type.
